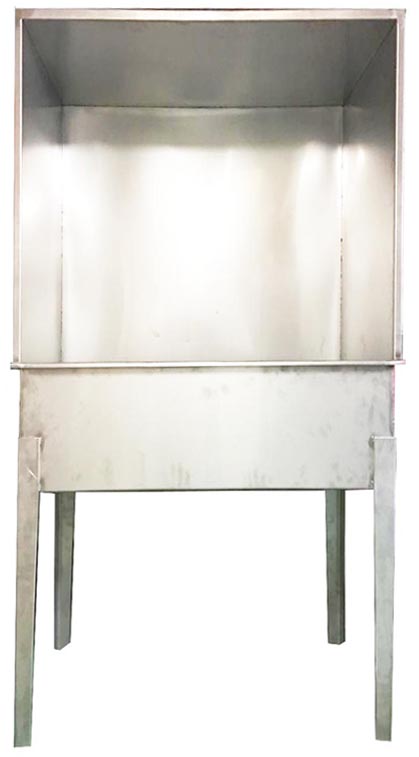

Stainless steel washout booth small

Original price was: £760.00.Current price is: £660.00.

Availability: 1 in stock

Description

Silk screen printing stainless steel washout booth
Manufactured by sunlight stencils.
Stainless steelfabricated booth.
Fabricated from 304 stainless steel 100% rust proof against the harshest of chemicals.Its antisplash back design ensures the work area and floor space around it stays dry. Welded water tight.
The stainless steel washout booth will last and out perform any other in its class.
Specifications.

This is a worthy piece of equipment where washout facilities are required in either printing workshops, school, colleges and universities or where cleaning solutions need to be disposed of in a controlled way.
Specifications:

Overall Dimensions:
153cm Height from floor to top with legs attached
44cm Deep
76cm Width

Inside Dimensions:
90cm high inside wash area.
70cm wide inside wash area
40cm deep inside wash area
40mm waste hole
Solid Stainless steel water tight anti splash design. Allow operators to work in a cleaner and drier environment,this washout booth is an affordable option for improving operator safety and cleanliness in the reclaim area.

Stainless Steel
Welded Construction
Durable / Long Lasting
Economical
Easy Clean Up
Low Maintenance
Minimal Space Requirement

A STEP-BY-STEP GUIDE TO RECLAIMING SCREENS WITH SCREEN PRINTING CHEMISTRY

The first step in reclaiming is to remove all excess ink off the screens. screen Wash, Aqua Wash, and Ink Degrader can all be used to remove ink off a screen. Which do you use? For water-based ink, use Aqua Wash. For plastisol ink, you have two options — screen Wash or Ink Degrader. Supreme Wash is meant to be used as an on-press cleaner (like if you need to do a colour change). If you’re moving straight to reclaim, use the Ink Degrader.

Whichever chemical you choose to use, spray it onto the screen and wipe it with a rag. The longer you leave screens inked up, the harder cleaning them out will be. Once the screens are clear of ink, tape, or other residues, it’s time to get to reclaiming.

Reclaiming

Now that the screen is ink-free, it’s time to move on to the second step, removing emulsion. Spray Emulsion Stripper onto the screen and scrub both sides of the screen with a dedicated scrub brush (all scrub brushes for the reclaim process should be separate so you’re not mixing chemicals).

Wait about 30 seconds for the Emulsion Stripper to do its job, then pressure wash. The emulsion should come out pretty easily. Repeat the process if there’s still emulsion on the screen. The overexposed emulsion will require more work to wash out.

Ghost image removal.

The third step . Sometimes, you may find a ghost image on the screen after stripping the emulsion.

Ghost images are either an image stain or emulsion haze.

An image stain occurs when leftover pigment from the ink stains the mesh itself. Emulsion haze happens when underexposed emulsion doesn’t react to the emulsion remover.

Don’t worry if you notice a ghost image, most printers experience both types of these issues at some point.

Whichever problem you’re facing, solve it with Haze Remover. As the name implies, Haze Remover is a spray that removes emulsion haze or ghost images.

Hase pasteis a gel that acts as a haze remover . Both get the job done, so it’s up to you which one you’d prefer to use.

To use, apply a generous amount of product to the area affected and scrub with a dedicated scrub brush.

Let the chemical sit for about 5 minutes, then pressure wash from the bottom of the screen to the top.

This way, debris is blasted right off the screen instead of being pushed down the screen.

Use a hose to rinse the screen. The water should cascade down the screen in a sheet.

Now, it’s time to degrease the screen and dry it.

Degreasing Screens

The last, but not least step in the process is degreasing.

The purpose of degreasing screens is to remove any debris like dust, oils, fingerprints, etc. to help prevent pinholes or fisheyes.

use eco friendly Degreaser to get the job done.

Spray a generous amount onto the screen, scrub, and let sit for three minutes.

Flood rinse with a hose and make sure the water cascades down the screen in a sheet.

If the water doesn’t cascade down the screen, repeat this process.

That’s all there is to it.

Follow the steps on the bottles and you’ll have clean screens ready for the next job in no time.
